brass angle valve

Our Brass Chrome Finish Angle Valves are precision-engineered from premium-grade Brass CW 617N, with a polished chrome plating for superior corrosion resistance and aesthetic appeal. These valves are ideal for controlling water flow at a 90° angle in domestic and commercial plumbing applications. The ergonomic handle allows smooth operation and precise water control.

Technical Specifications

• Material: Brass CW 617N
• Finish: Chrome Plated
• Thread Type: BSP Male / Female
• Maximum Working Pressure: 16 Bar (230 psi)
• Maximum Temperature: 100°C
• Valve Type: Angle Valve (90°)
• Function: Controls water flow at 90° in pipelines

Use

• For water control in domestic and commercial plumbing systems
• Compatible with sinks, faucets, RO systems, and water purifiers
• Ensures leak-proof and precise flow control

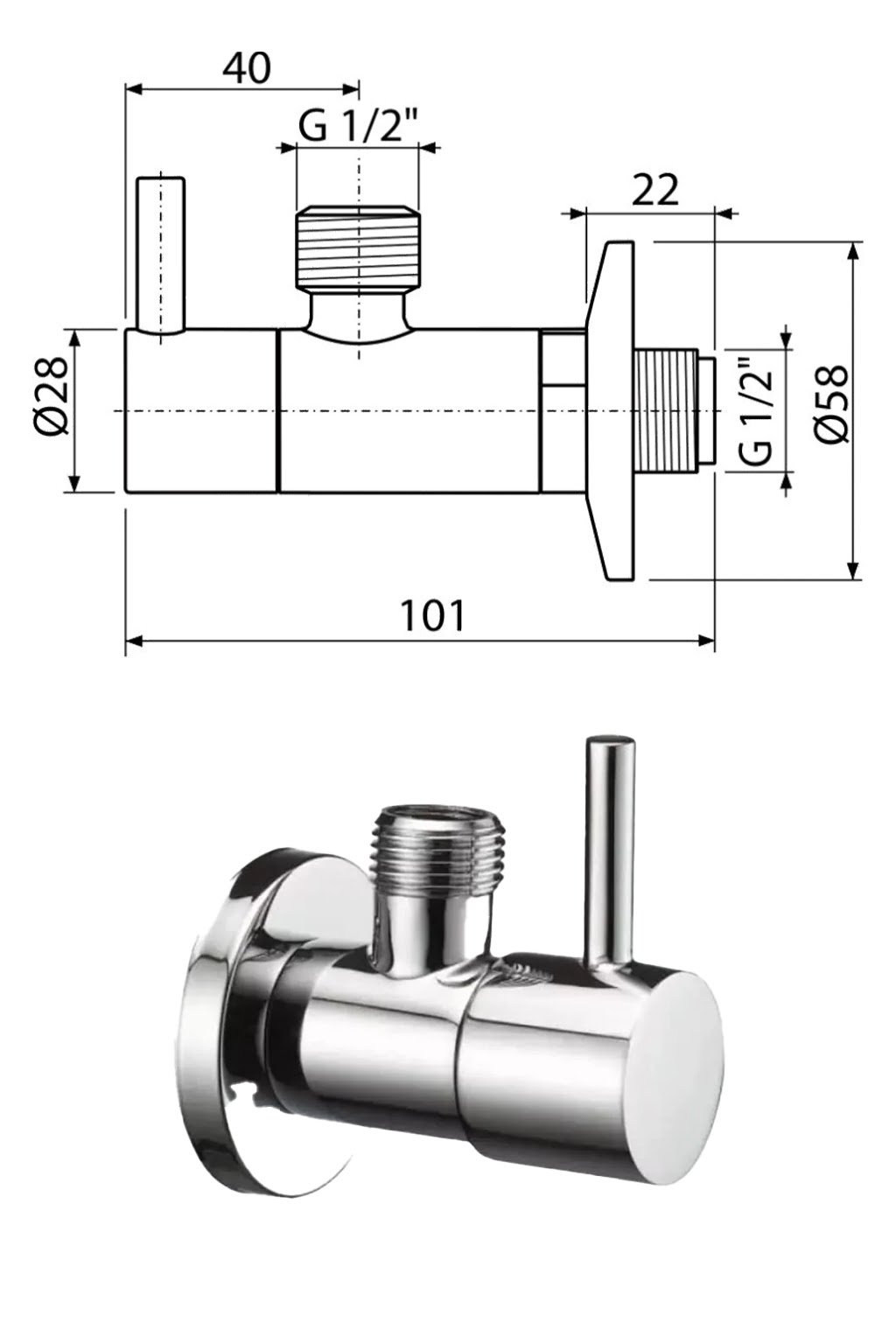

Sizes / Dimensions
