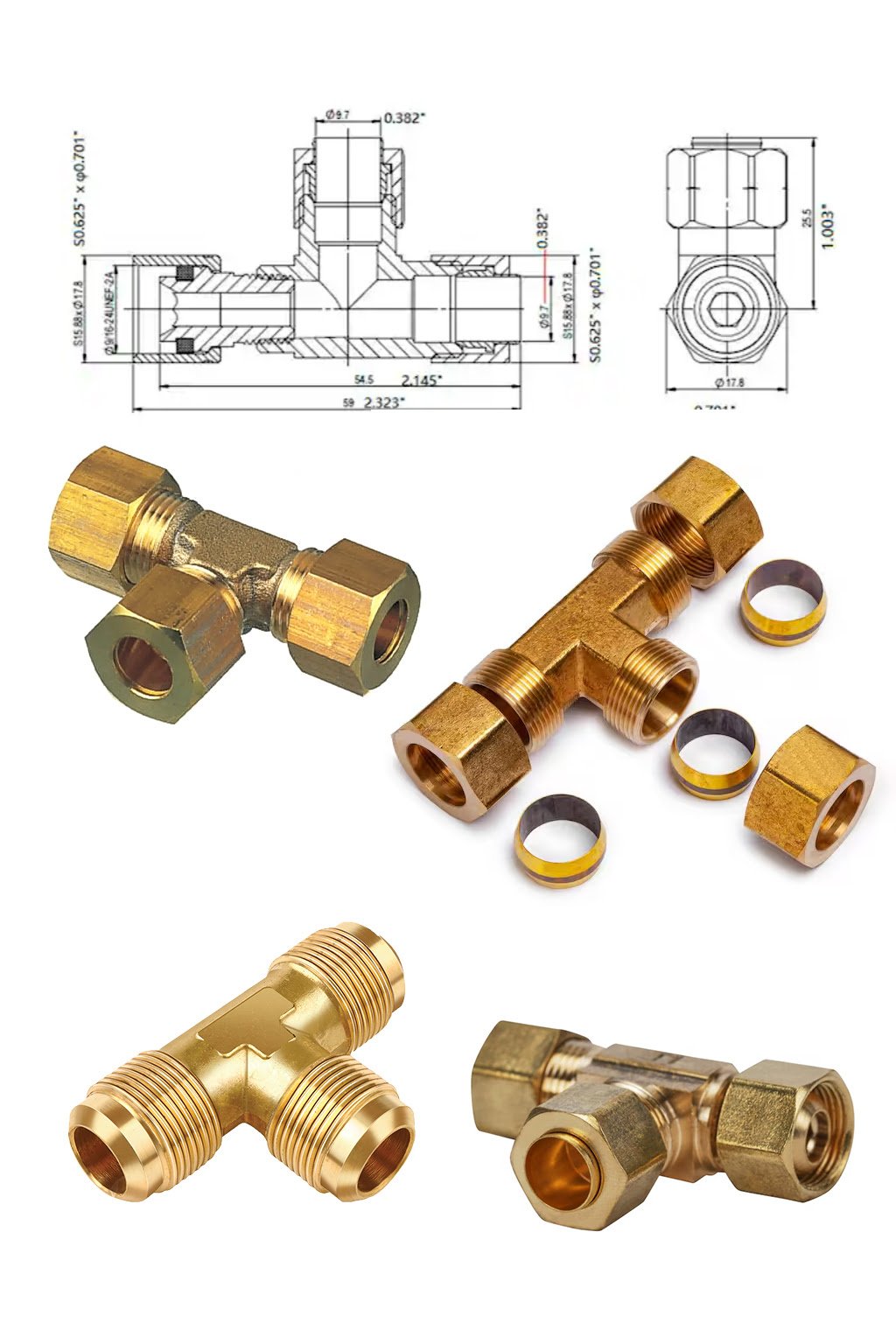

brass tee
Our Brass Tees are precision-engineered from premium-grade brass (CW 617N) for superior corrosion resistance and durability. Designed to split or combine fluid flow in plumbing systems, these tees provide leak-proof, secure connections for domestic, commercial, and industrial applications. Polished finish enhances appearance and longevity.
Technical Specifications
- Material: Brass CW 617N
- Thread Type: BSP Female / Male (as per product)
- Maximum Working Pressure: 16 Bar (230 psi)
- Maximum Temperature: 100°C
- Finish: Polished Brass
- Function: Split or combine fluid flow in piping systems
Use
- For splitting water flow in plumbing pipelines
- Ideal for RO systems, water purifiers, and domestic plumbing applications
- Ensures leak-proof and secure connections in piping systems
Sizes / Dimensions
| No | Size (All Ends) | Thread | Length (mm) |
|---|---|---|---|
| 1 | ½” x ½” x ½” | BSP Female | 30 |
| 2 | ¾” x ¾” x ¾” | BSP Female | 35 |
| 3 | 1” x 1” x 1” | BSP Female | 40 |
| 4 | 1¼” x 1¼” x 1¼” | BSP Female | 45 |
| 5 | 1½” x 1½” x 1½” | BSP Female | 50 |
