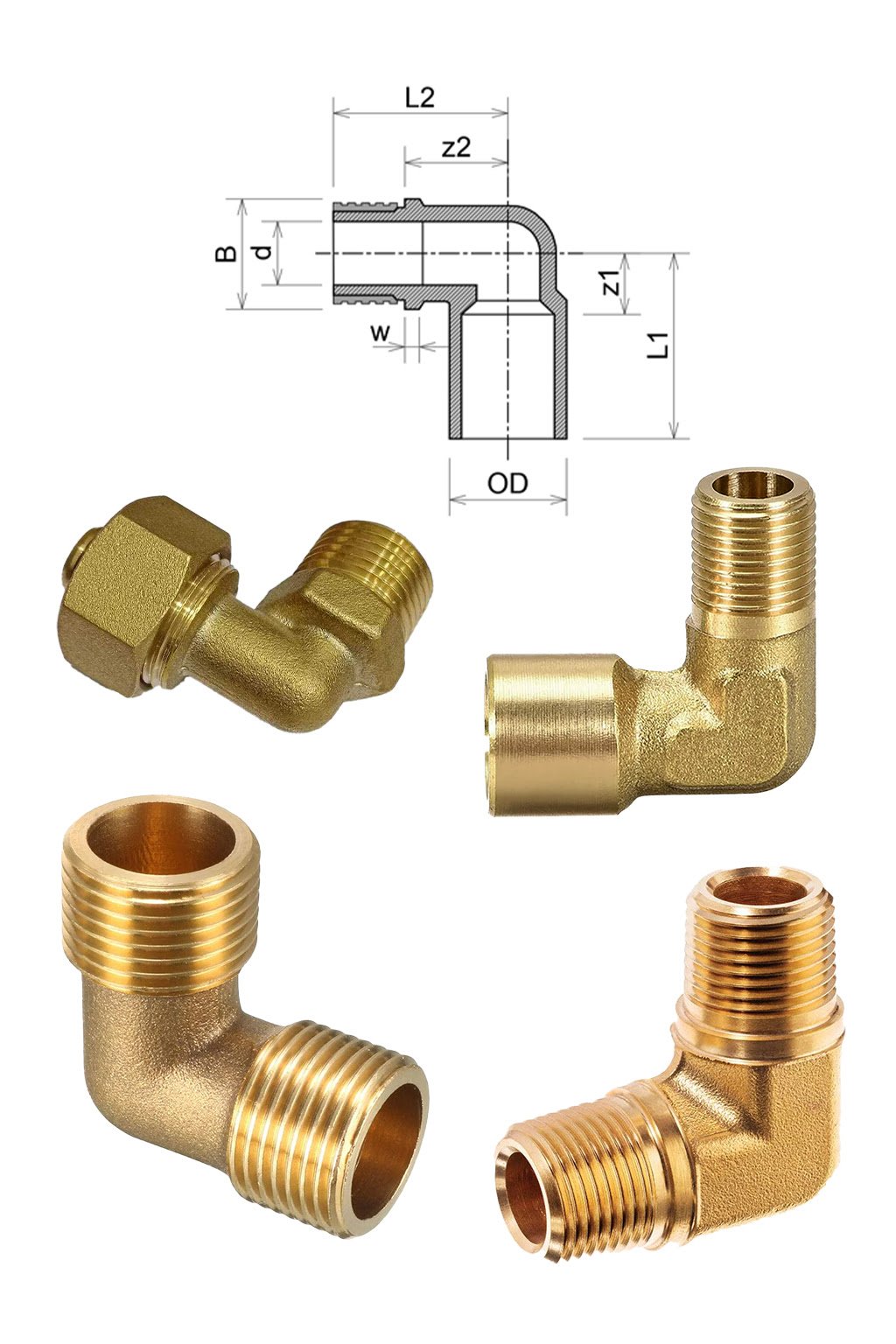

brass elbow
Our Brass Elbows are manufactured from premium-grade Brass CW 617N, designed to provide a secure and leak-proof change in the direction of piping systems. Ideal for plumbing, RO systems, water purifiers, and industrial applications, these elbows ensure durability and long-lasting performance.
Technical Specifications
- Material: Brass CW 617N
- Thread Type: BSP Male / Female (as per product)
- Maximum Working Pressure: 16 Bar (230 psi)
- Maximum Temperature: 100°C
- Finish: Polished Brass
- Function: Change pipe direction securely and leak-proof
Use
- For changing the direction of water flow in plumbing pipelines
- Compatible with RO systems, water purifiers, and domestic plumbing applications
- Ensures leak-proof and durable pipe connections
Sizes / Dimensions
| No | Size (Inlet x Outlet) | Thread | Angle |
|---|---|---|---|
| 1 | ½” x ½” | BSP Male/Female | 90° |
| 2 | ¾” x ¾” | BSP Male/Female | 90° |
| 3 | 1” x 1” | BSP Male/Female | 90° |
| 4 | 1¼” x 1¼” | BSP Male/Female | 90° |
| 5 | 1½” x 1½” | BSP Male/Female | 90° |
| 6 | 2” x 2” | BSP Male/Female | 90° |
